20 Ton Overhead Crane Solutions: 3 Ultimate Choices!
Are you seeking an efficient 20-ton overhead crane solution for your outdoor warehouse, railroad, or construction site? Here are our 3 guaranteed options that deliver!

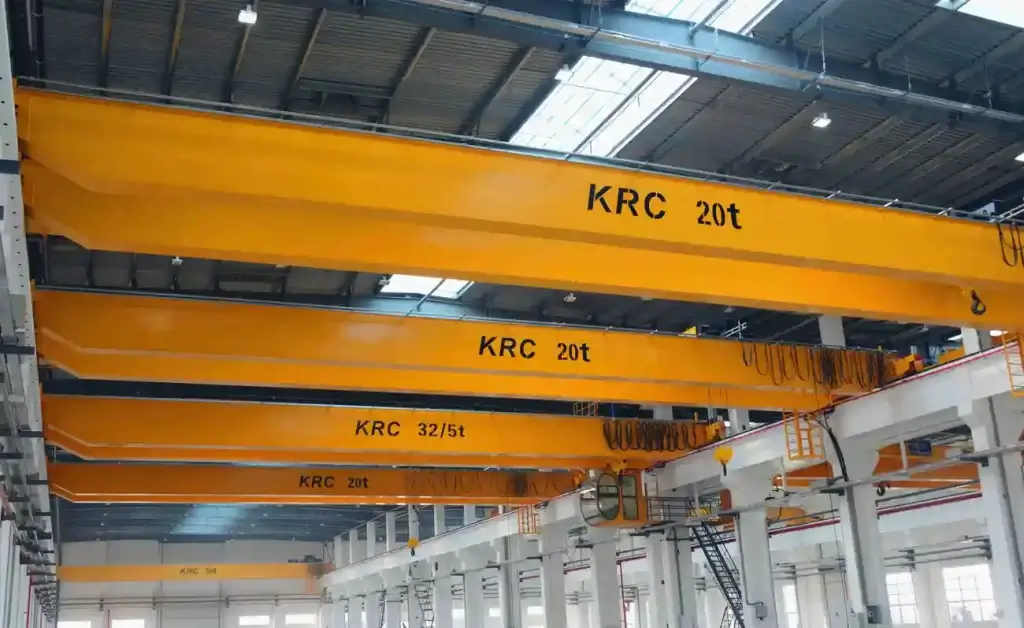

Light 20 Ton Overhead Crane
Our Light overhead 20-ton crane is designed to handle a wide range of heavy load-lifting at your light construction and industrial project sites.
It includes a gearbox, a motor, and a frequency converter for smooth, precise, and efficient load control.
The 20-ton double-beam overhead crane can span up to 49 meters with an indoor industrial lifting height of 30 to 40 meters.
Winch 20 Ton Overhead Crane
Does your construction or industrial project involve frequent lifting and pulling of loads up to 20 tons? Our Winch Overhead 20-ton crane is the perfect solution for your project needs.
The crane features a bridge design for enhanced lifting power. Based on your project needs, we can customize the crane to handle load capacities ranging from 5 to 360 tons!
20 Ton Gantry Crane
Do you desire an outdoor 20-ton crane for lifting and lowering heavy loads at your construction site, manufacturing space, railroads, shipyards, or our outdoor warehouse?
Our certified high-efficiency 20-ton gantry Crane provides the lifting power you need and allows for customization to suit your load-handling space and lifting height.
Light 20 Ton Overhead Crane Solution
Specifications
| Description | Detail |
| Core Components | Gearbox, Motor, Frequency Converter |
| Place of Origin | Henan, China |
| Warranty | 1 Year |
| Weight | 5000 kg |
| Crane Feature | Bridge Crane |
| Lifting Load | 5 to 100 Ton |
| Span Range | 0-49M |
| Product Name | Light Double Beam Overhead Crane |
| Usage | Construction Hoist |
| Max Lifting Height | 30M/40M |
| Lifting Speed | 0.4-16m/min |
| Operating Speed | 5-90m/min |
| Cross Traveling | 3-30m/min |
| Hoist | European-style electric wire rope hoist |
| Control Options | Wireless remote control, Cab operator control, handheld control |
| Certifications | CE, ISO |
Key Benefits and Specifications
- Has a double beam for a high-lifting capacity of up to 20 tons with a lifting height range of 30 to 40 meters.
- Power by energy-efficiency motors
- Equipped with a variable frequency drive(frequency converter) for safe control of lifting operations.
- It has a span of up to 49 meters and allows for customization to suit your project site.
- Ensures safety and high efficiency with its three remote control options.
- It allows customization to suit your other load-lifting loads from 5 to 100 tons!
- The crane comes with a European-style electric wire rope hoist for enhanced energy efficiency, precise braking, speed control, and lifting flexibility.
- Demands low maintenance and, therefore, we serve you better for longer
- Conforms to both the CE and ISO certification standards
- Has a 1-year warranty with the necessary support services
Winch Overhead 20 Ton Crane
Specifications
| Description | Detail |
| Core Components | Gearbox, Motor, Frequency Converter |
| Place of Origin | Henan, China |
| Warranty | 1 Year |
| Weight | 5000 kg |
| Crane Feature | Bridge Crane |
| Lifting Load | 5 to 360 Ton |
| Span Range | 0-49M |
| Product Name | Winch Double Beam Overhead Crane |
| Usage | Construction Hoist |
| Max Lifting Height | 30M/40M |
| Lifting Speed | 0.4-20m/min |
| Long Operating | 5-90m/min |
| Cross Traveling | 4-40m/min |
| Hoist | European-style electric wire rope hoist |
| Control Options | Wireless remote control, cab control, handheld control |
| Certifications | CE, ISO |
Key Benefits and Specifications
- Robust double Beam design for stable and safe lifting and pulling of up to 20 tons within your construction site
- Allows for customization of its load-lifting capacity to suit your project requirements
- Designed with different lifting and cross-traveling speeds to achieve the desired performance efficiency and productivity
- Allows for wireless, handheld device, and cabin operator control options for enhanced safety and performance efficiency.
- Designed with different span ranges to suit your heavy-load handling space
- Has a lifting height range of 30 to 40 meters for safe and stable indoor handling of heavy loads.
- Equipped with a European-style electric wire rope hoist for efficient and compact load-lifting and pulling operations.

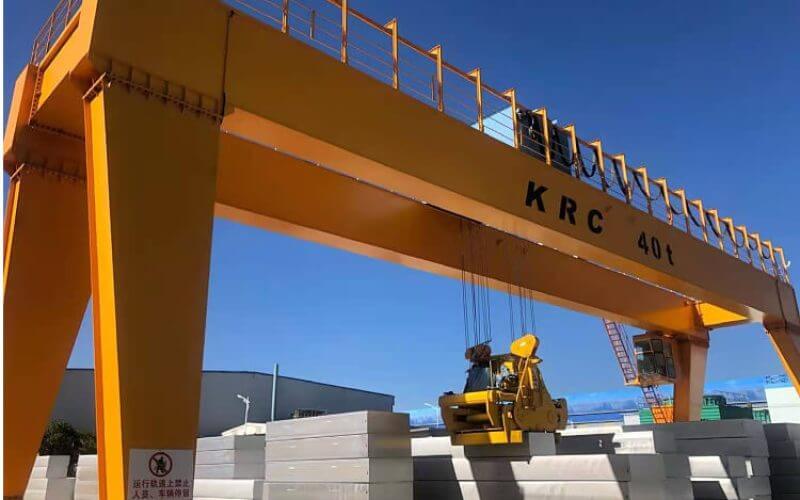

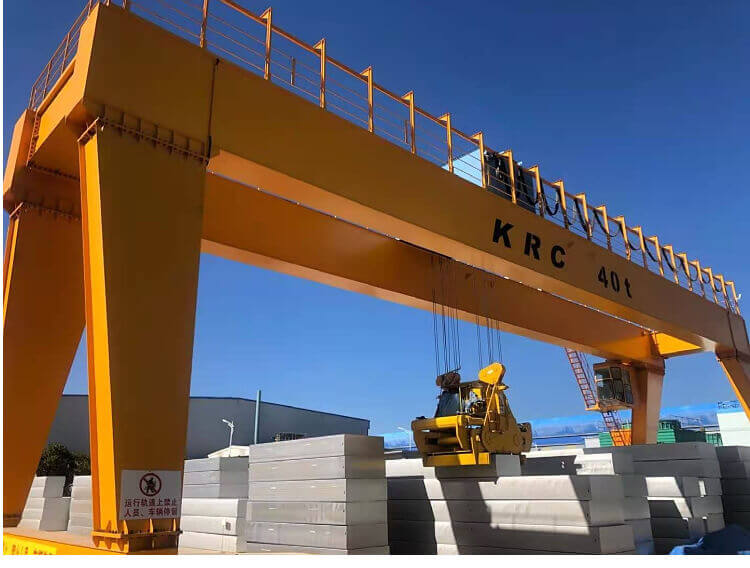

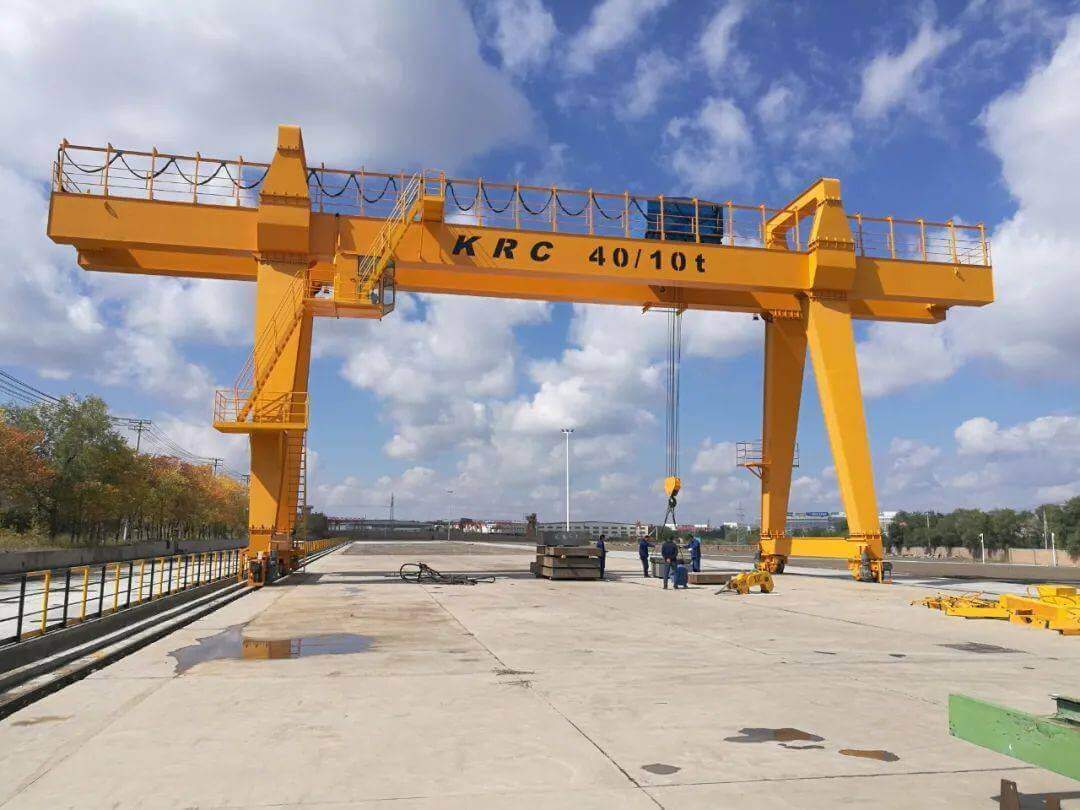

20 Ton Gantry Crane
Specifications
| Description | Detail |
| Lifting Capacity | Maximum 320 tons |
| Span | Maximum 50 meters |
| Running Speed of Large Vehicle | 3-30 m/min |
| Trolley Running Speed | 4-40 m/min |
| Lifting Speed | 0.4-16 m/min |
Key Benefits and Specifications
- It is designed to suit your outdoor lifting of heavy loads of up to 20 tons with an option for customization to handle up to 360 tons!
- It has a span of up to 50 meters, which allows enough space for the safe handling of heavy loads
- The Versatile load-lifting solution is suitable for your construction site, outdoor warehouse load-handling, manufacturing facility, and shipyard projects.
- Boast a trolley speed range of 4-40 m/min maximum operation safety and desired productivity.
- Controllable lifting and lowering speed to achieve your desired load-handling precision.
Where Do You Require 20 Ton Overhead Crane Solutions?
Some of the heavy-load handling areas where our certified solutions for 20 Ton Cranes may be needed to successfully drive your projects are:
- Construction Industry: 20-ton cranes are suitable for handling light construction materials or equipment within construction sites.
- Marine Industry: In the Shipyards to facilitate ship repairs or shipbuilding projects
- Ports Operations: At the ports, 20-ton cranes can facilitate your efficient loading and offloading of light containers
- Warehouses and Goods: If you have large and busy warehouses or distribution centers, 20-ton overhead cranes come in handy in handling materials for storage or safe offloading of materials or loads.
- Mining Industry: For lifting heavy mining machinery, equipment, or materials
- Automotive Industry: For large vehicle assembly plants, 20-ton cranes facilitate the safe lifting and movement of assembly machines, engines, and engine components.
- Power and Energy Production Sector: For lifting and lowering of heavy power-production equipment during installation or servicing.
- Manufacturing or Production Facility: The 20-ton crane facilitates your effortless movement of machines, raw materials, and manufactured products within a production or manufacturing facility.
